Reusable Bulk Bin Containers

Perfect for solar balance of system (BOS) components.

Safeguard Your Solar Balance of System

The PVpallet BOS Bulk Bin is a reusable, stackable, collapsable container with a pallet style base for optimal lifting and moving. UV and weather resistant, these robust HDPE boxes are ideal for shipping and storing solar eBOS components like wire coils, micro-inverters, junction boxes and sBOS equipment like racking and tracking components.

Innovative Base Design

  • Flat, solid deck with eight drain holes to prevent moisture collection

  • No center foot on base eliminates potential product damage in container underneath

  • One-piece base and fork straps

  • Durable design maximizes life cycle

User-Friendly Walls and Doors

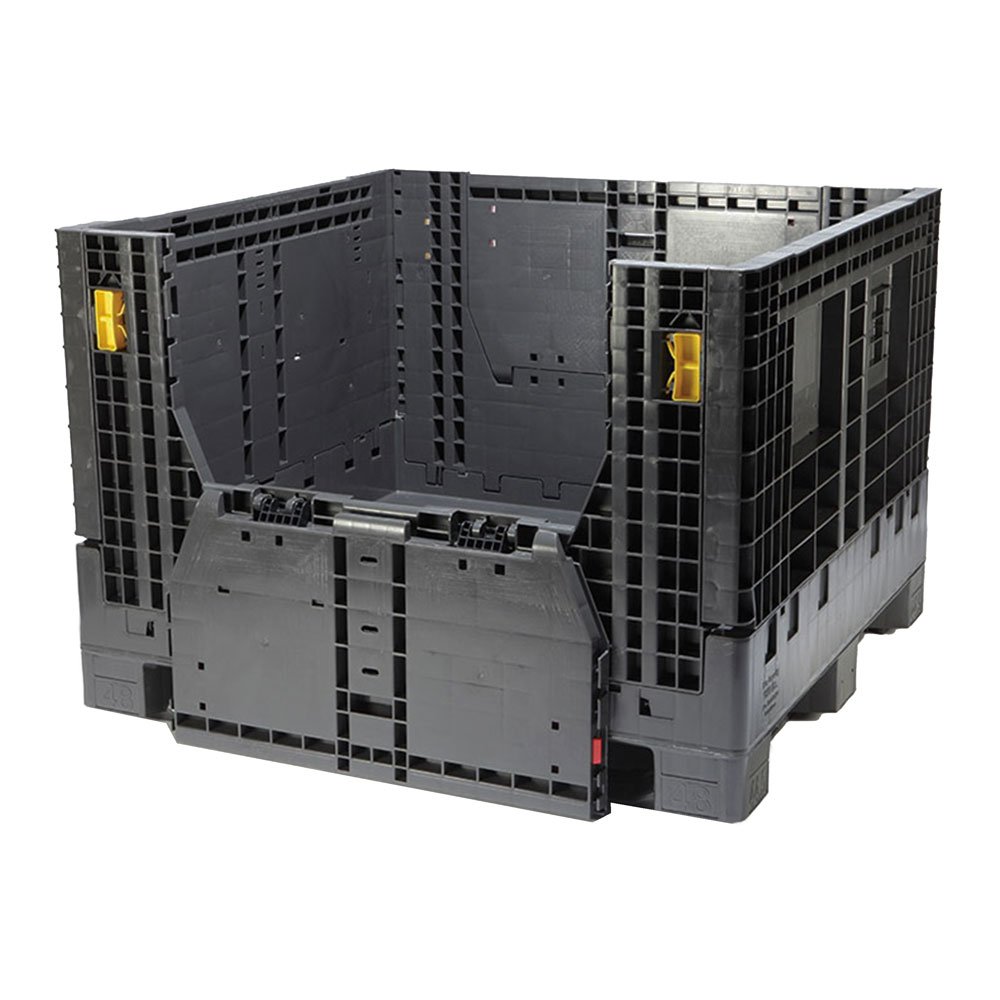

  • Two access doors available on all heights; optional four-door access on 42,” 45,” and 50” bins

  • Molded-in lift provisions on walls for easy container set-up

  • One-piece snap-in release latches

  • Articulating door hinges allow access doors to lie vertically

  • Wall stop protects collapsed walls with height extenders

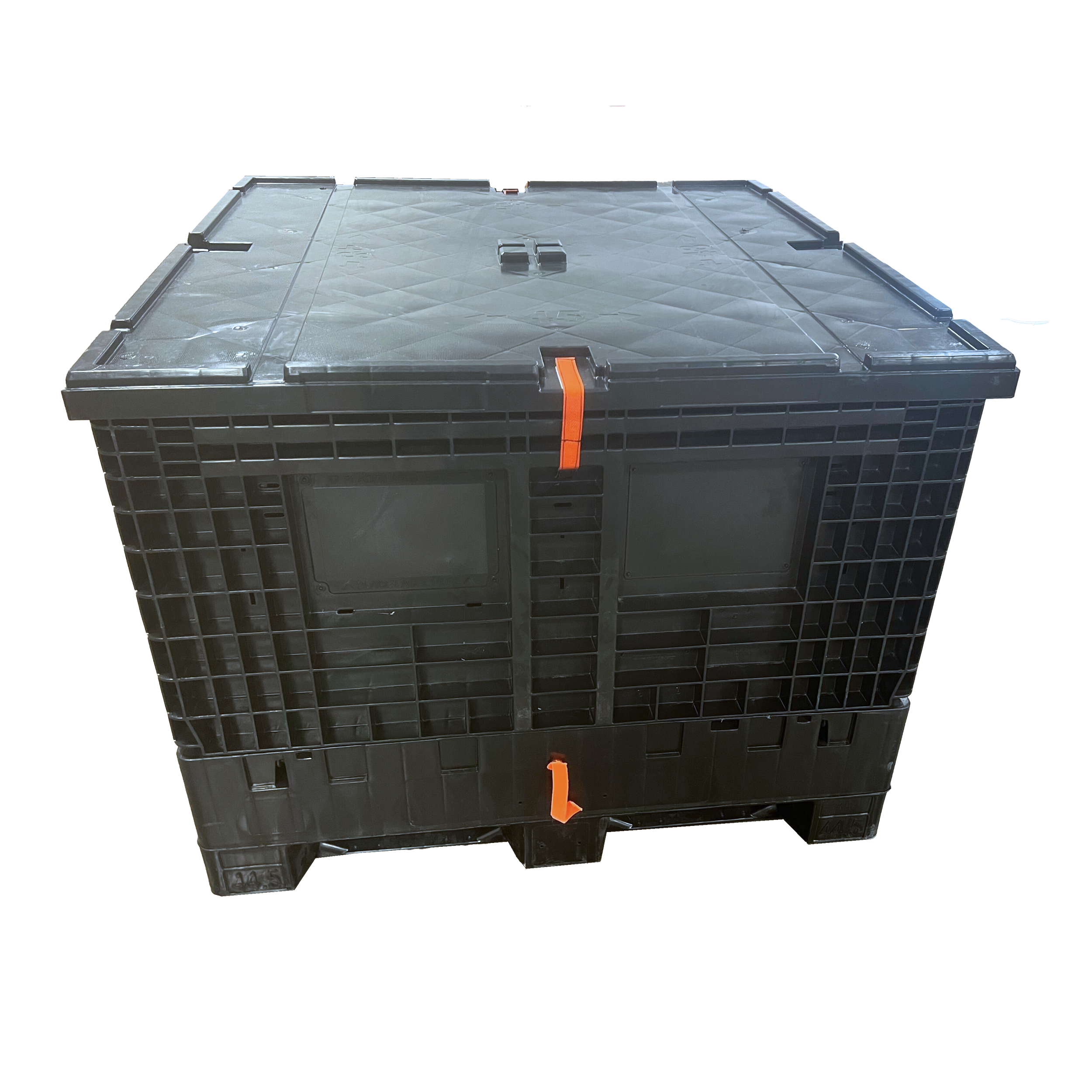

Optional Top Cap

  • Optional top cap lid keeps goods safe from dust and debris

  • Lid is available with or without latches

  • Universal fit on all bulk bins and 48 x 45 palletized totes

Built to Last

  • Made of post-industrial High Density Polyethylene (HDPE)

  • Collapsible design with 45 x 48″ global footprint

  • 2,000 lb load capacity; available in 9 heights from 17” to 50”

  • Cold resistance: impact resistant -40°F to 194°F

BOS bins are available in 6 heights with optional top cap.

Dimensions

Global Base (inches): 48 x 45

Height Options (inches): 25, 34, 37, 42, 45, 50

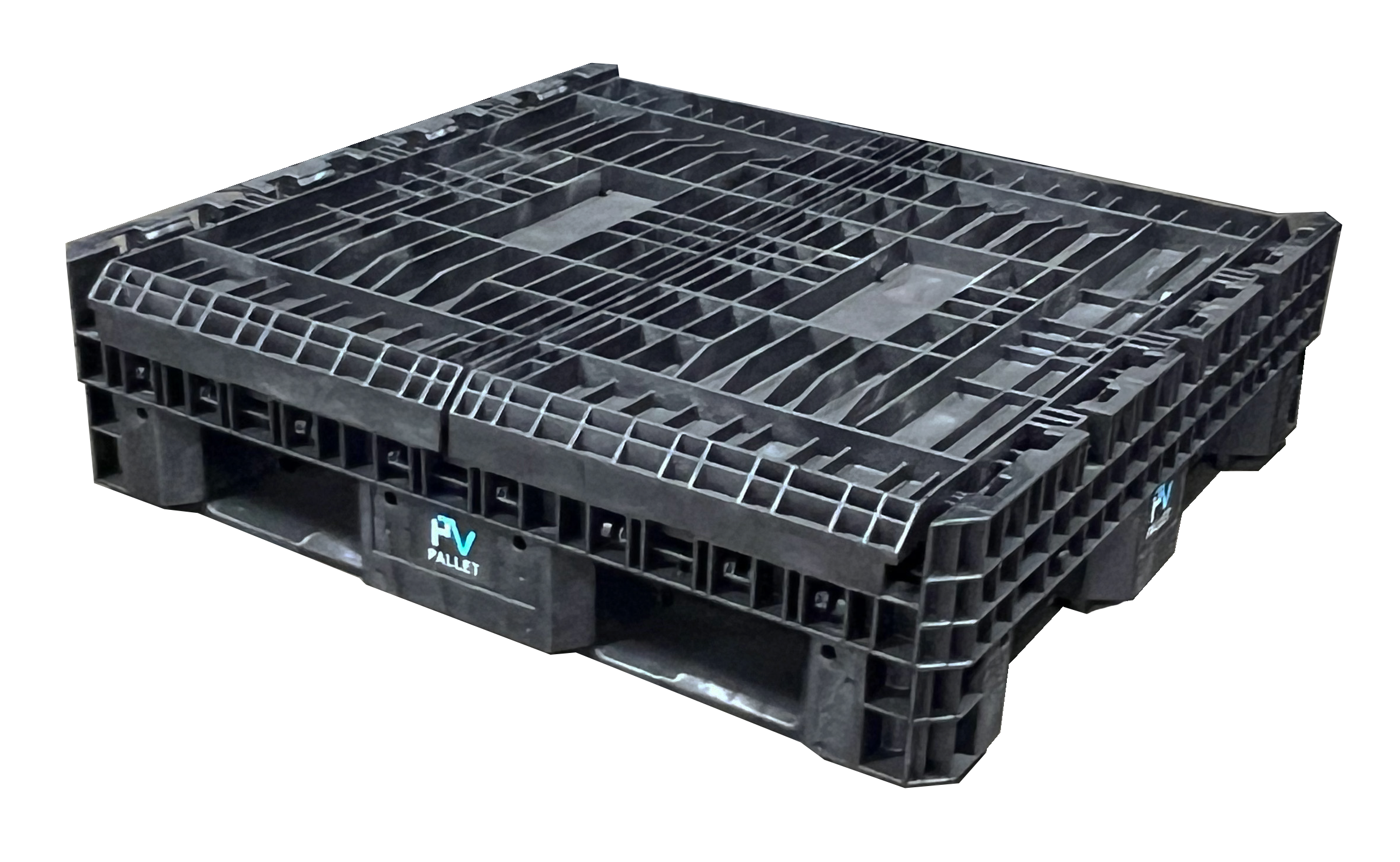

Collapsed Height (inches): 12.75 on 25 and 34 units

Top Cap (inches): 48.9 x 45.9 x 2.56

Shipping

53’ Trailer Quantity by Height (Erect Quantity in Parenthesis):
25” (104), 34” (78), 37” (52), 42” (52), 45” (52), 50” (52)

53’ Trailer Quantity by Height (Collapsed Quantity in Parenthesis):
25” (234), 34” (234), 37” (130), 42” (130), 45” (104), 50” (78)

Download BOS Bulk Bin Spec Sheet
